WARNING : Not compatible with SHS motors, or AEGs with Mosfet or ETU or Micro switch triggers. NOT compatible with M4A / M4I Hopup Chambers.
Product Description
Dual UV LED Boards and Module set is made for MAXX ME/MI Hopup Chamber series to glow BBs in the dark during firing.
This UV LED Tracer unit has the Dual UV LED Boards mounted on both side of chamber to glow BBs.
This UV LED Tracer unit is powered by connecting the 2 Round Terminals to the Motor Screw Terminals RED (+) and BLACK (-). DO NOT REVERSE POLARITY!
Operating Voltage from 7VDC to 15VDC (2-4 cells LiPo, 6-13 cells NiCad).
This UV LED Tracer unit has the Dual UV LED Boards mounted on both side of chamber to glow BBs.
This UV LED Tracer unit is powered by connecting the 2 Round Terminals to the Motor Screw Terminals RED (+) and BLACK (-). DO NOT REVERSE POLARITY!
Operating Voltage from 7VDC to 15VDC (2-4 cells LiPo, 6-13 cells NiCad).
| Includes | |
 |

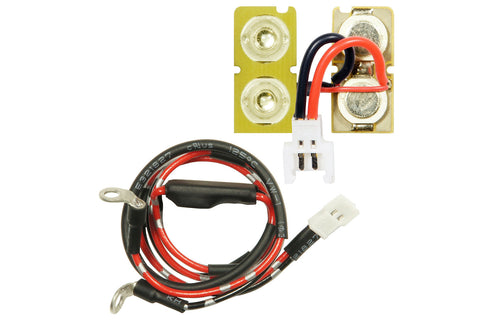

1 x Dual UV LED Boards |
|
1 x Electronic Module and Cable set |
| Specification |
|
LED Type: Ultra Violet Light |
|
Wattage: max 3W |
|
Current: max 450mA |
|
Voltage: 7VDC to 15VDC (2-4 cells LiPo, 6-13 cells NiCad) |
| Features | |
|
Designed for MAXX ME/MI Hopup Chamber series to glow BBs in the dark during firing |
|
Mounted Dual UV LED Boards on both side of chamber to glow BBs |
|
Powered by connecting the 2 Round Terminals to the Motor Screw Terminals RED (+) and BLACK (-). DO NOT REVERSE POLARITY! |
|
Wide Operating Voltage from 7VDC to 15VDC (2-4 cells LiPo, 6-13 cells NiCad) |
| Weight | |
|
N/A grams |
| Compatibility | |
|
Compatible with MAXX TE/IE/ME/MI Hopup Chamber series (NOT suitable for M4A/M4I Chambers) |
| Requires | |
|
Phillips screwdriver #00 and #2 |
|
Wearing eye protection is recommended |

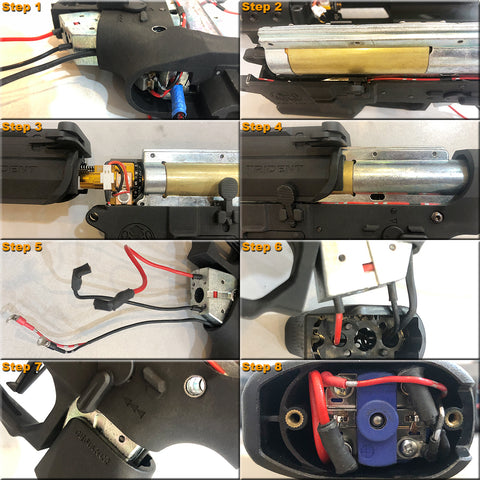

| Instruction | |
|
Instruction Manuals are included |
