  • Sale
  • $119.99

  • ASTER SX for V2

    ASTER SX for V2 gearboxes – the natural successor of ASTER SE – merges years of experience with cutting edge tech. ASTER SX is fully compatible with popular brushless motors – even with batteries up to 11.1 V. The unit heats up less even while accommodating higher loads. ASTER can operate with stronger springs and more demanding configurations. ASTER SX comes with a free Quantum Trigger, so you can easily set sensitivity from ludicrous touch through hair to full movement. Improved programming via trigger gives you settings such as automatic Pre-Cocking, trigger sensitivity adjustment, Active Brake settings with top-class adaptive mode. Calibration available just via trigger and selector movement. ASTER V2 SX turns your AEG into future-proof advanced training equipment. All this, along with a thicker and sturdier PCB – 1 mm in thickness – makes ASTER V2 SX one of the most durable ETUs on the market.

What distinguishes ASTER V2 SX from the competition?

  • ASTER SX is future-proof, thanks to compatibility with USB-Link and Blu-Link. You can update your firmware and get new options, connect additional accessories, check telemetry.

    ‎

    What is an ETU? It is an Electronic Trigger Unit replacing trigger contacts and the cut-off lever, which takes control of your AEG.

    Why ASTER's programming via trigger is user-friendly?

    ‎

    • you do not need to rush
    • you can navigate the menu very quickly and efficiently or slowly and calmly
    • the colors of the led lights are only a help – you can rely on the vibration of the motor
    • in case of any problems, you can use the very popular USB-Link or Blu-Link and use the GCS App

    ‎

    What is the self-learning automatic pre-cocking?

    ‎

    • thanks to Pre-cocking, you gain trigger reaction similar to real life
    • it will automatically set piston position
    • it is easy-to-use, just set one of the 3 modes: LOW, MID or HIGH
    • it automatically adapts to the battery voltage and rate of fire
    • ASTER gives you great flexibility and is future-proof. Today you can program the most important functions with the trigger, and tomorrow you can borrow a USB-Link or Blu-Link from a friend to configure advanced functions, perform a firmware update, run diagnostics or use the GCS app on a smartwatch
    • Hair-trigger – up to 60 sensitivity in the first millimeter of trigger movement
    • Top-notch automatic pre-cocking
    • Foregoing reverse polarity protection in exchange for unparalleled performance
    • You can update its firmware via the Internet
    • ASTER is a part of the GATE Ecosystem
    • Lowest in the market current consumption. Deep sleep mode with only 0.29 mA current consumption prevents battery discharge
    • Built-in voltage boost converter allows for trouble-free operation with weaker batteries and increases the switching efficiency
    • 3.75 V ready – it operates at very low voltage (even 1.2 V during the shot), which is important in high-tuned AEGs, where the voltage under load drops significantly
    • Sensor that supports Infinite Torque-up, DSG, SSG, 19-tooth and standard gears
    • The possibility of using a mechanical trigger lock
    • Compatibility with brushless motors

ASTER V2 SX – New Improved Version of ASTER SE

  • ASTER V2 SX

    Brushless motors compatibility

    Full compatibility with popular brushless motors – even with batteries up to 11.1 V

    Heat dissipation

    Reduced unit heating while accommodating higher loads

    Strong spring compatibility

    Up to M200 spring

    De-Cocking

    Rev. 2

    PCB thickness

    ↕️ 1 mm thick PCB

    Sensor Diagnostic Mode

    Enhanced

  • ASTER V2 SE

    Brushless motors compatibility

    Partial compatibility with brushless motors. Recommended battery capacities up to 7.4 V

    Heat dissipation

    Standard units heating while accommodating higher loads

    Strong spring compatibility

    Up to M150 spring

    De-Cocking

    Rev. 1

    PCB thickness

    ↕️ 0.9 mm thick PCB

    Sensor Diagnostic Mode

    Basic

SPECIFICATIONS

  • Supply Voltage Range

    3.75-12.9 V

    Rated Current

    30 A

    Current Consumption

    23 mA

    Low Power Mode

    288 µA

    Dimensions (Length x Width x Height)

    43.8 mm x 28.7 mm x 7.7 mm

    Finished Product Weight

    23.35 g

    Operating Temperature Range

    min. -15°C max. + 50°C

    Relative Humidity

    ≤ 80%

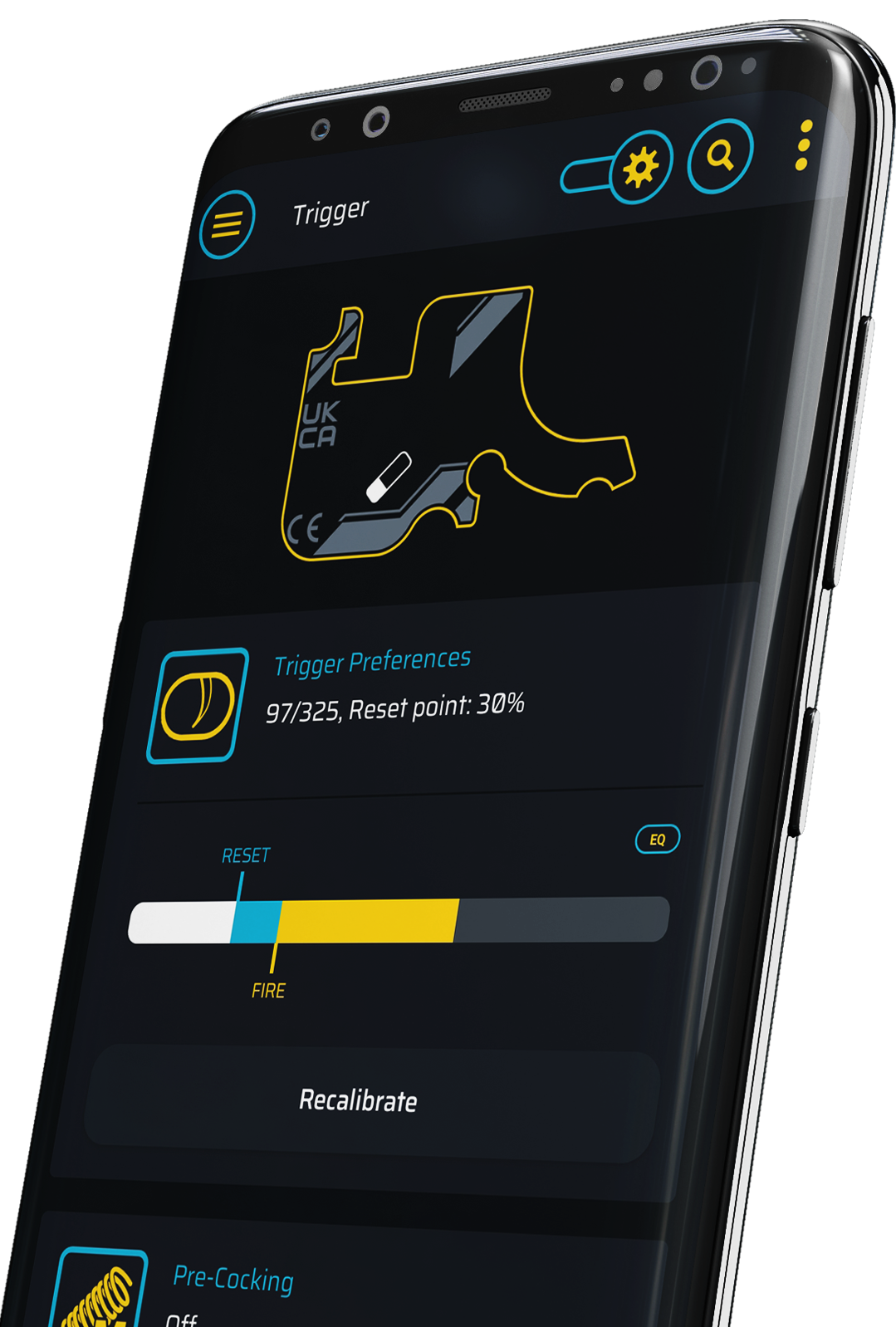

  • Connect your ASTER V2 SX with the GCS App and get total control of your AEG

    You choose how to configure ASTER V2 SX – simply via trigger or through USB-Link / Blu-Link and our advanced GCS App. You can ask your technician to update ASTER V2 SX firmware using Blu-Link or USB-Link, carry out diagnostics or change settings in a very convenient way. You can also get your own Blu-Link and use the Smartwatch app, giving you real-time data to reinforce your tactical decisions.

    Control your airsoft replica from your iOS, Android, macOS or Windows device using an additional dongle—USB-Link or BluLink
    Set trigger sensitivity exactly as you like and adjust other ASTER V2 SX settings in a simple way
    Use automatic Pre-Cocking to gain a trigger reaction just like in a real replica

  • GCS APP

    ASTER and GCS App give you total control of your AEG. ㅤ

    ㅤ

    The GCS offers you the option to:

    • Control your airsoft gun from a smartphone with Android, iOS and PC with Windows or macOS

    • Get real-time data from your smartwatch (with Wear OS or watchOS) to reinforce your tactical decisions and get the advantage necessary to win

    • No more surprises with an empty magazine or a discharged battery

    • Easily adjust the ASTER settings during the game

    • Update and upgrade firmware

    • View the BB counters, electrical measurements, and statistics

    • Perform diagnostics and send reports

    • Get the latest news from GATE Enterprise

    ㅤ

    Download GCS App

FEATURES

2-STAGE TRIGGER

Enables you to set two different trigger sensitivities. Pulling the trigger slightly produces SEMI or BURST fire. Pulling it further produces BURST or AUTO fire. Select your sensitivity preferences for each stage.












































































What makes ASTER V2 SX so special?

    • Everything you need out-of-the-box
    • Quantum Trigger included in the kit
    • No need to use USB-Link for installation and configuration
    • New noise-resistant trigger detection algorithm
    • Hair-trigger out-of-the box. Even 60 trigger sensitivities for the 1st mm (0.04 in) of movement
    • Additional protection against interferences thanks to multi-layer PCB with EMC shield
    • Automatic Pre-Cocking: LOW / MID / HIGH
    • Trigger sensitivity adjustment without any limitation
    • Improved cycle detection
    • Active brake adjustment: Adaptive / 100% / 60% / Brushless motor / OFF
    • New selector mode: SAFE - SEMI - BINARY instead of SAFE - BINARY - AUTO
    • GCS App allows for making firmware updates via the internet, which enables quick applying of improvements
